HIKMICRO HIKTac TC19L Thermal Sight

Product detailed description

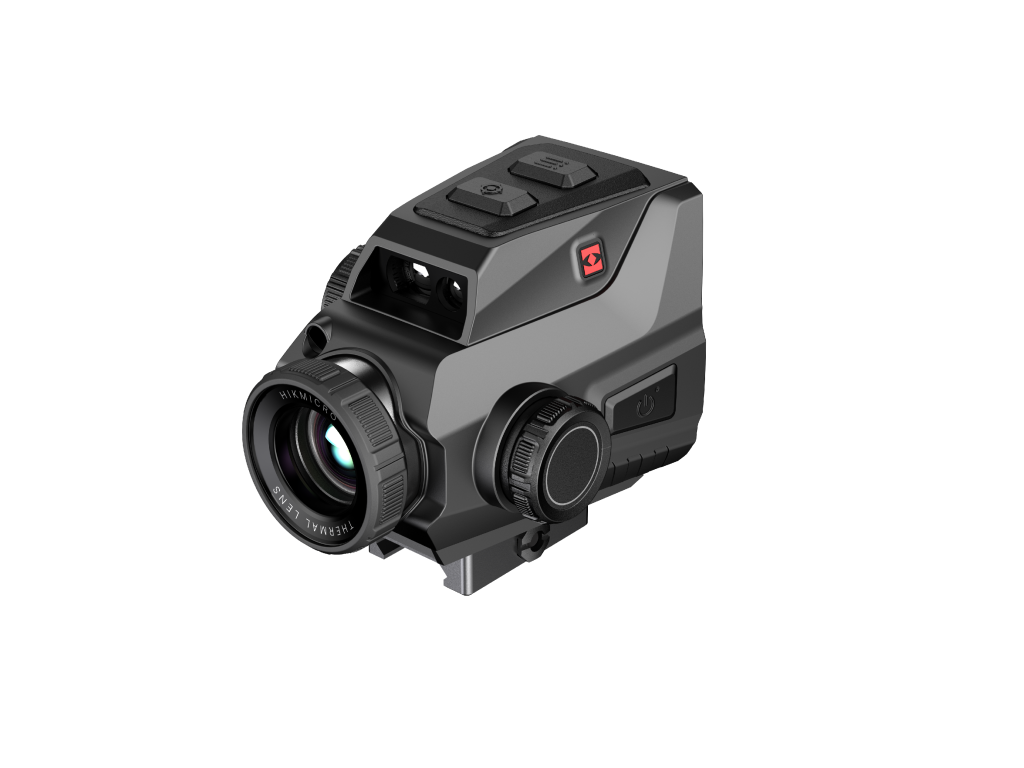

Meet the HIKMICRO HIKTac TC19L thermal sight, a compact and lightweight weapon-mounted device that reliably reveals targets day or in complete darkness. At its heart is an uncooled thermal detector of 256 × 192 px with a 12 μm pixel pitch and excellent NETD < 18 mK sensitivity that distinguishes even the smallest temperature differences. The large 3.1" AMOLED display delivers an immersive, sharp and high-contrast image. It additionally features a 1000 m laser rangefinder with ballistic calculation for more precise aimed shooting. All this at a weight of only 290 g and IP67 protection.

• Thermal core 256 × 192 px, 12 μm, NETD < 18 mK, 50 Hz
• 19 mm F1.0 lens with focus ring
• Detection range up to 900 m, magnification 1.2× – 9.6×
• Large 3.1" AMOLED display (600 × 450)
• Image Pro 3.0, Zoom Pro and HSIS technologies for a clean image
• 905 nm Class 1 laser rangefinder up to 1000 m and ballistic calculation
• Up to 5 zeroing profiles and Freeze Zeroing
• Built-in 4 GB storage, Wi-Fi hotspot, video and photo recording
• IP67 protection, −30 °C to 45 °C operation, weight 290 g

Thermal core and image quality:

A perfect image is delivered by an uncooled thermal detector of 256 × 192 px (12 μm pixel pitch) with excellent NETD < 18 mK sensitivity and a 50 Hz frame rate. Image Pro 3.0, Zoom Pro and HSIS (HIKMICRO Shutterless Image System) technologies ensure a clean, smooth picture without disruptive shutter blackout. The image is shown on the large 3.1" AMOLED display (600 × 450) with several adjustment levels. Available palettes are Black Hot, White Hot, Red Hot and IronBow, with tone (warm/cold), brightness and contrast adjustment.

Lens, magnification and detection:

The 19 mm thermal lens with an F1.0 aperture and a focus ring delivers sharp focus on the target. The detection range is up to 900 m, the field of view 9.2° × 6.9° and total magnification 1.2× – 9.6×. The minimum focusing distance is 1 m, spectral range 8–14 μm.

Laser rangefinder and ballistic calculation:

The TC19L additionally features a laser rangefinder (905 nm, safety Class 1) with a range of up to 1000 m and ±1 m accuracy (minimum measuring distance 10 m). Combined with the built-in ballistic calculation, it enables more precise aimed shooting even at longer distances.

Zeroing and smart functions:

The device offers up to 5 zeroing profiles (saving settings for multiple weapons) and a Freeze Zeroing function for easy, precise zeroing. Built-in 4 GB (eMMC) storage allows video recording and snapshots, with PIP (picture-in-picture), a Wi-Fi hotspot for connecting to the mobile app, a local album and a standby mode for quick wake-up.

Power and rugged build:

Power is supplied by one replaceable, rechargeable 18650 battery lasting up to 3.5 h; it can be charged directly in the device via USB-C (5 V / 2 A). The rugged IP67 body with an operating temperature of −30 °C to 45 °C withstands demanding conditions. The lens is protected by a Killflash mesh cover against glare. Dimensions 106.9 × 94.8 × 86.7 mm, weight 290 g (without battery).

Specification:

Package contents:

• HIKMICRO HIKTac TC19L thermal sight
• Rechargeable 18650 battery (1×)
• Killflash mesh lens cover with O-ring
• USB Type-C cable
• Lint-free cloth
• Carry bag
• Quick start guide
