Autel EVO Lite 640T Enterprise Plus Combo with 7.9" RC

Product detailed description

Description:

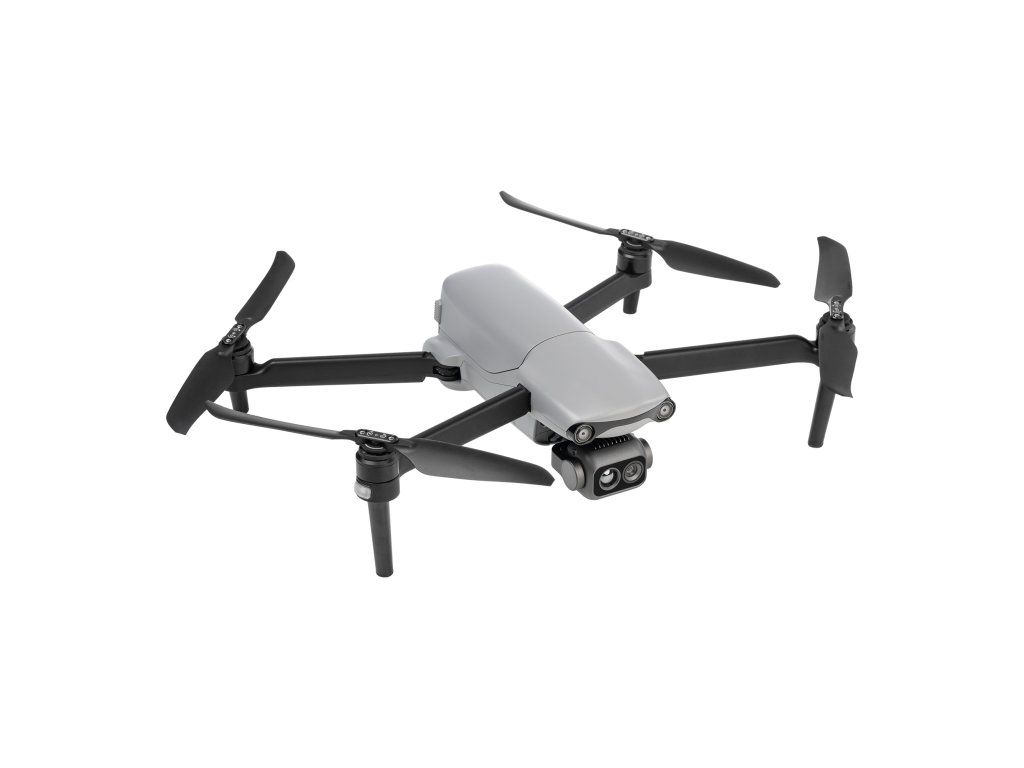

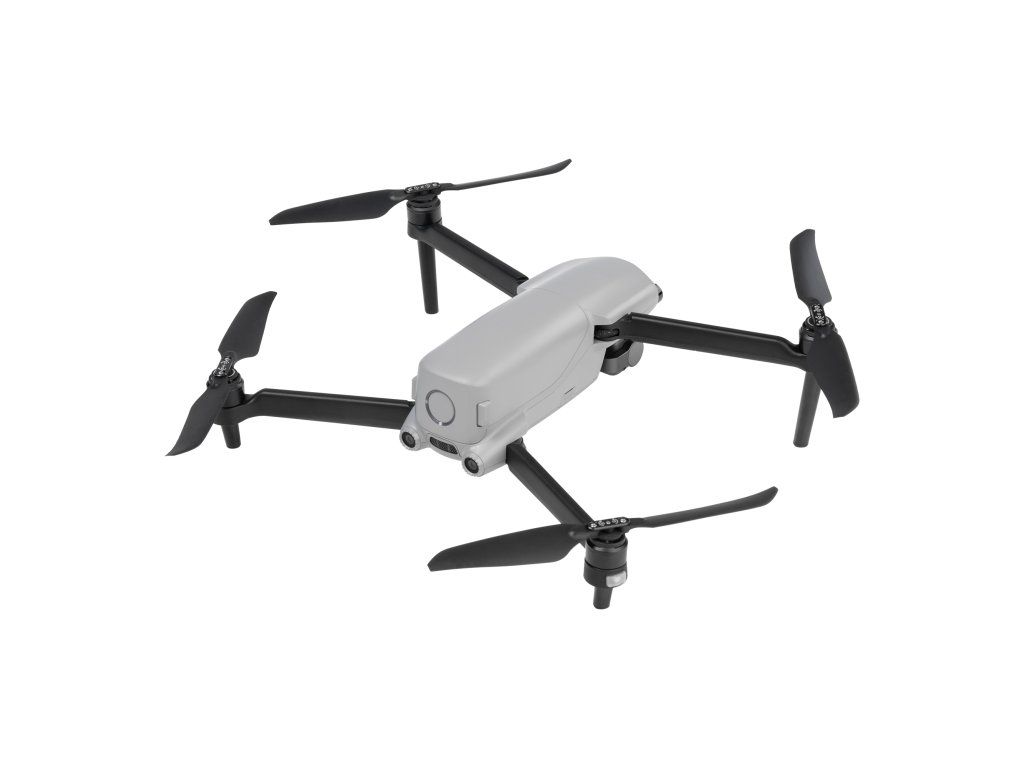

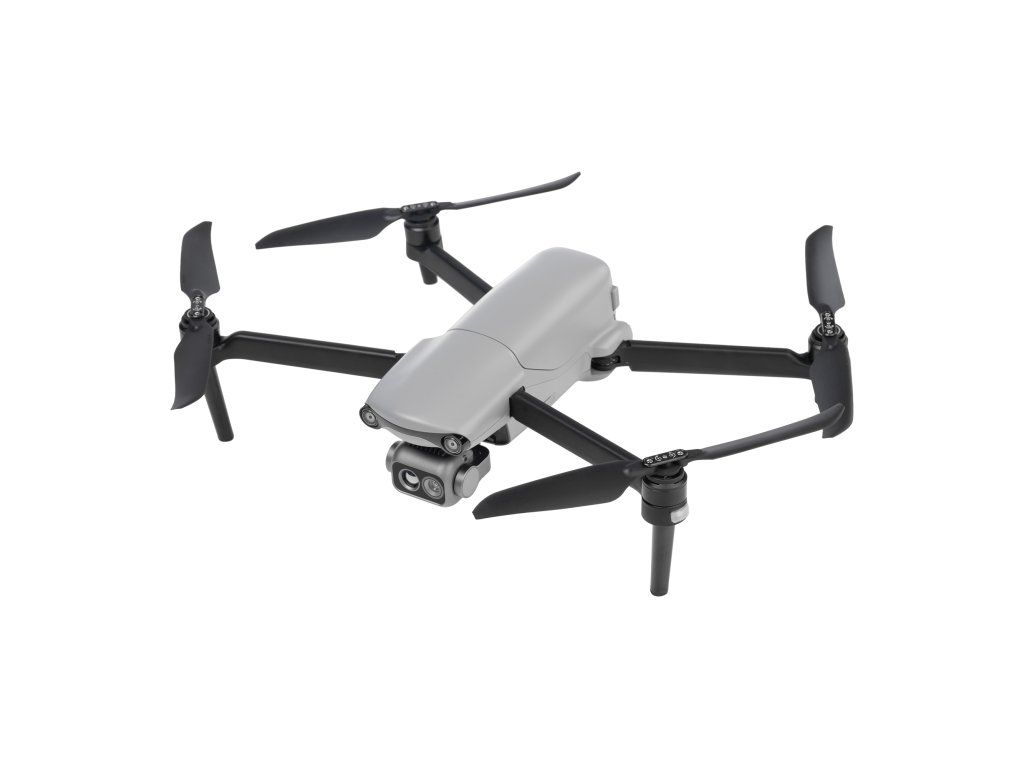

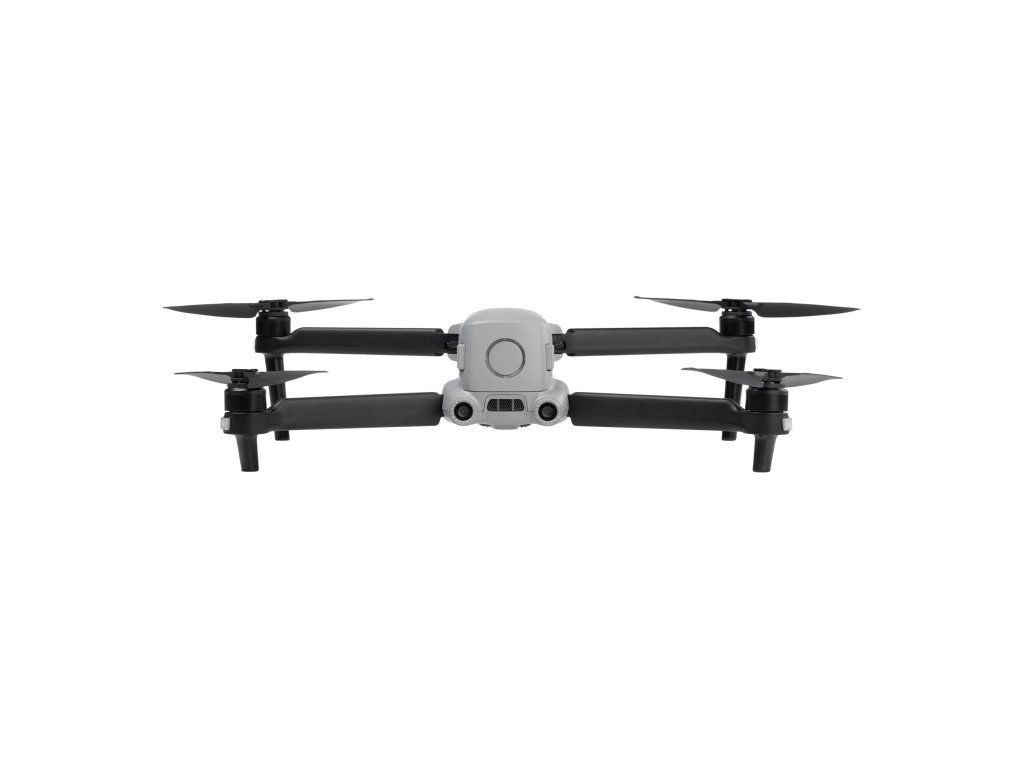

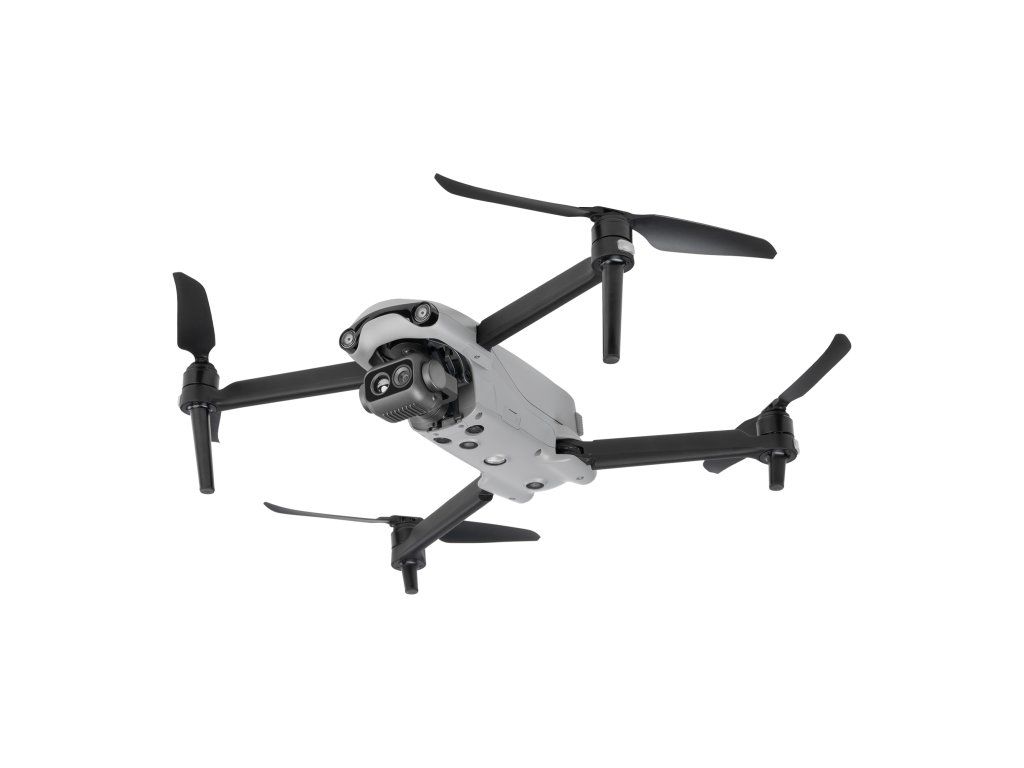

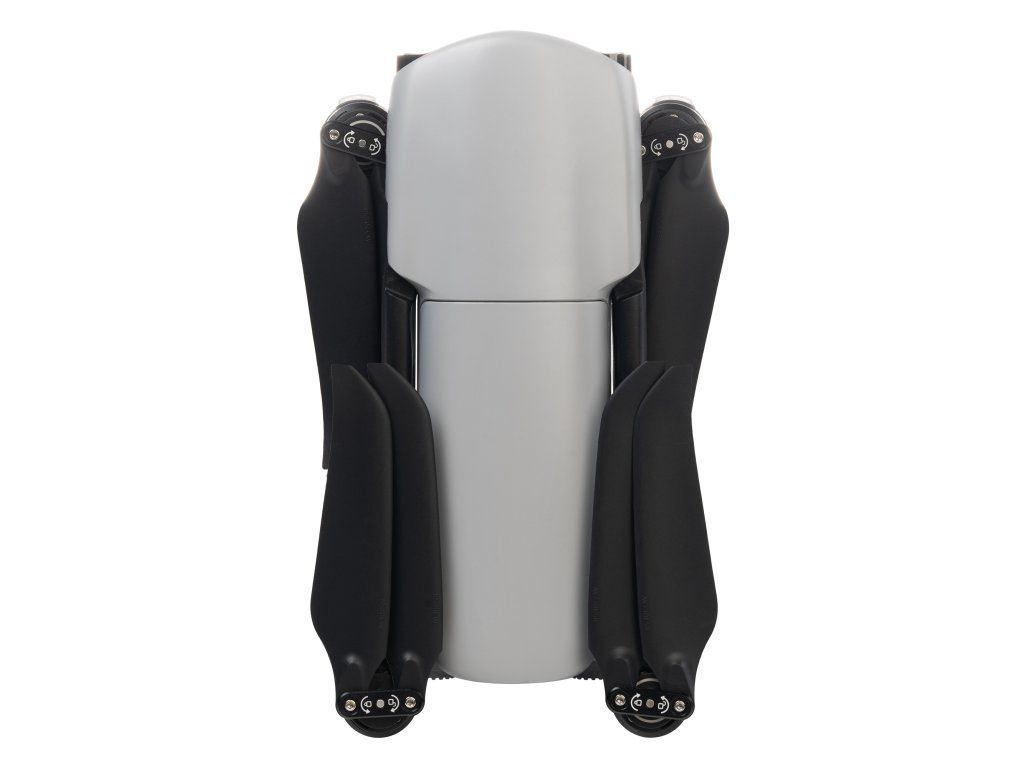

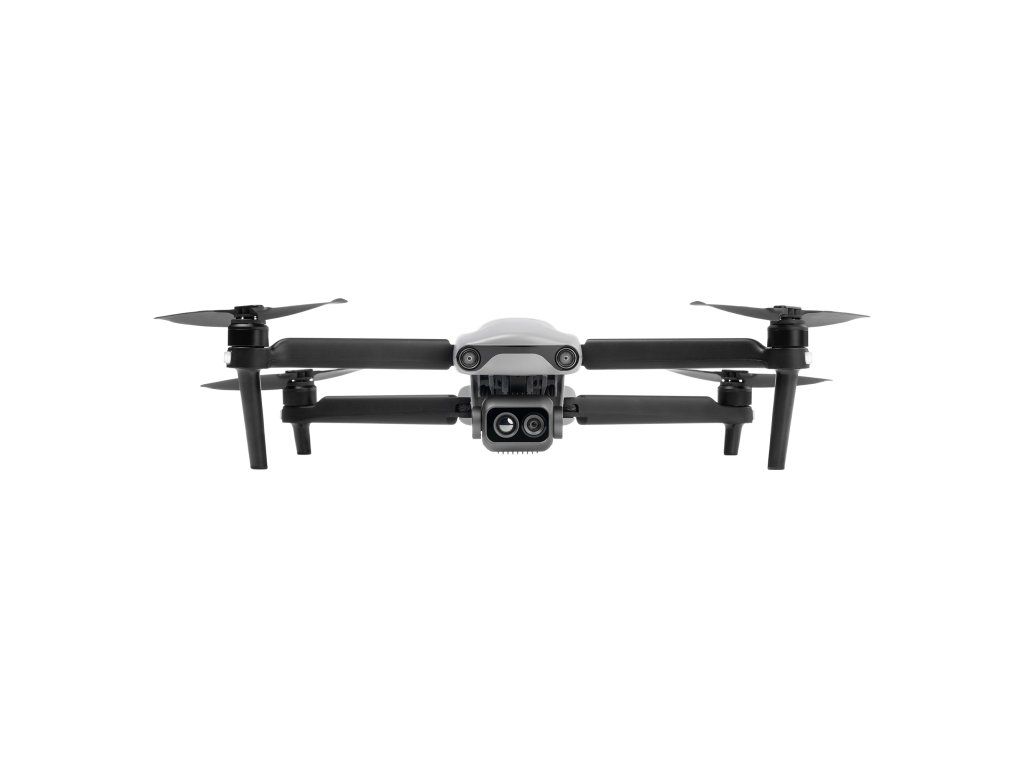

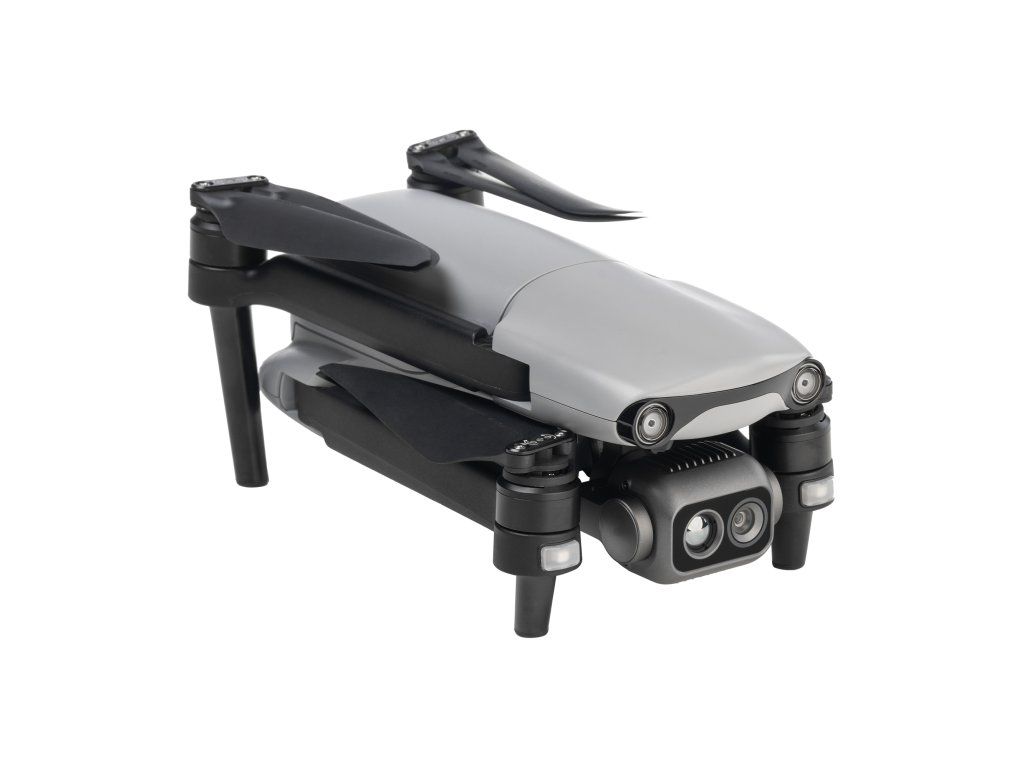

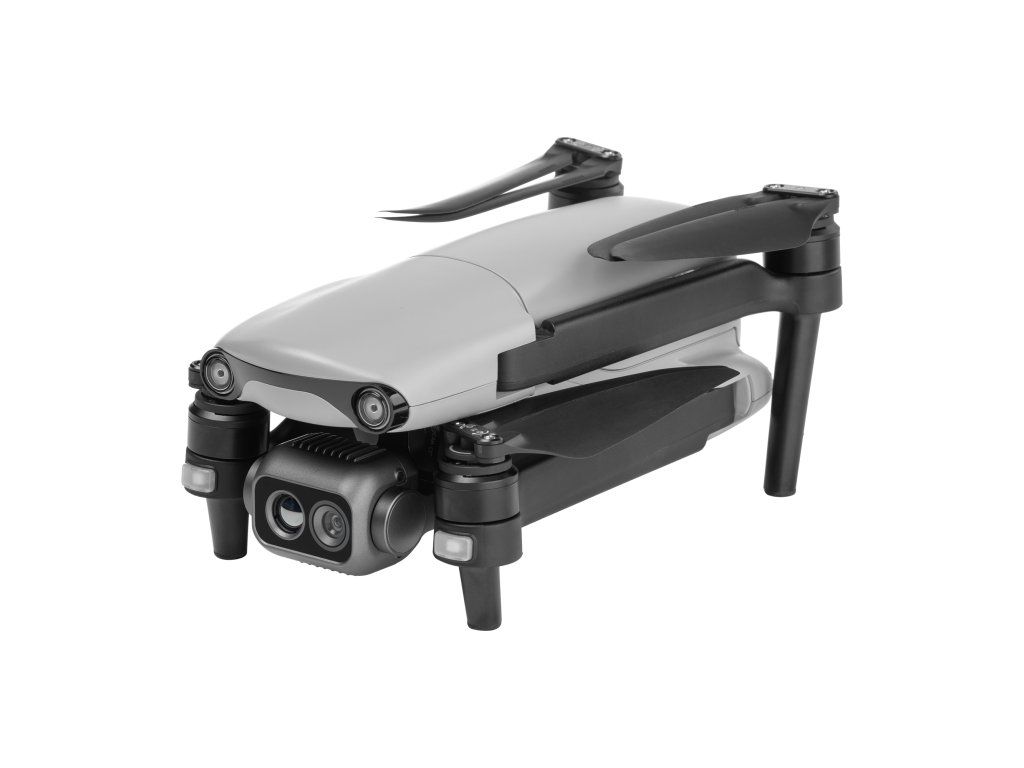

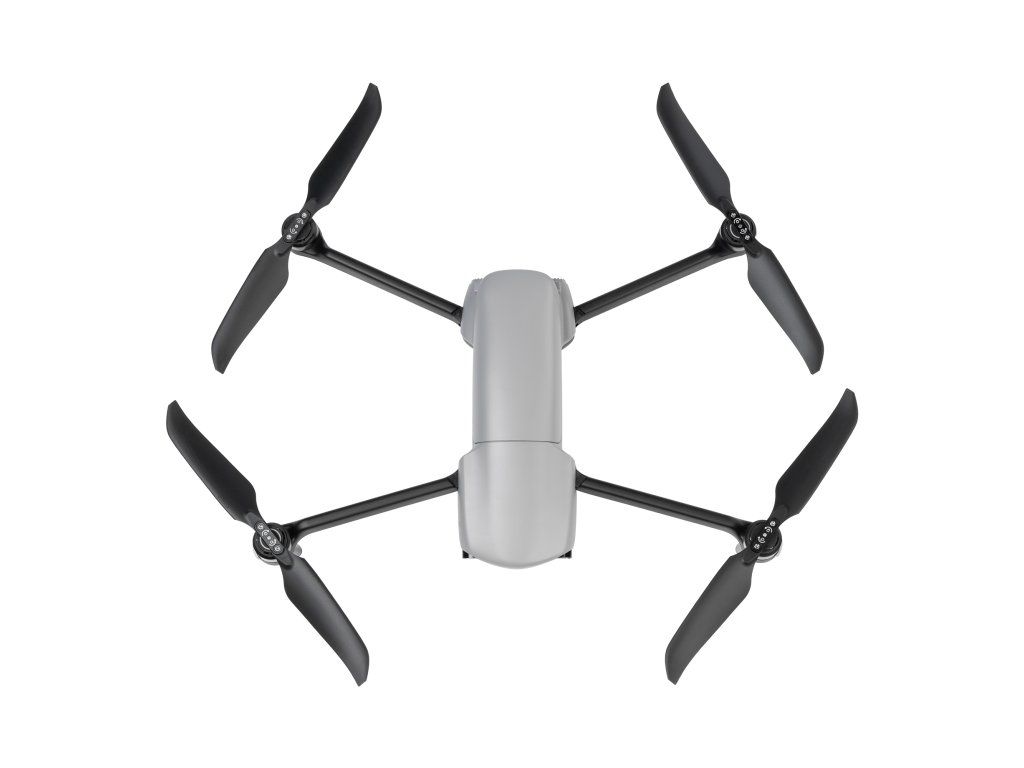

Autel EVO Lite 640T Enterprise Plus Combo is the premium version of the lightest enterprise drone with a thermal camera on the market. The drone is technically identical to the standard EVO Lite 640T Enterprise model – a compact dual-sensor machine weighing only 866 grams with a 640 × 512 pixel thermal camera and a 48 MP visible spectrum camera. The decisive difference of the Plus Combo lies in the controller: instead of the standard Smart Controller SE (6.4" display, 800 nits), the package includes the premium Smart Controller V3 with a 7.9" TFT LCD display with a resolution of 2048 × 1536 pixels and a brightness of 2000 nits – thus 2.5× brighter and with a significantly larger working area.

The larger and brighter display of the Smart Controller V3 is key for field work with thermal images. When inspecting photovoltaic panels, electrical lines, or buildings, the operator needs to clearly see thermal anomalies even in direct sunlight – and the 2000 nits of brightness and 7.9 inches of diagonal ensure perfect readability in any lighting conditions. The controller runs on Android 11, has 128 GB of internal storage, and a 5800 mAh battery with up to 4.5 hours of life at 50% brightness. IP43 protection shields the controller from dust and light rain.

The drone's camera system combines a main camera with a 1/2" CMOS sensor with a resolution of 48 megapixels (fixed aperture F2.8, 16x digital zoom) with a VOx uncooled sensor thermal camera, which measures temperatures in the range from -20°C to +550°C with a thermal sensitivity better than 50 mK. Split-screen modes are available for simultaneous display of visible and thermal images, AI recognition of 64 object categories, and A-Mesh technology for networking multiple drones.

Thanks to its weight of 866 g the drone falls into the C1 category, which allows operation near people and significantly simplifies mission planning in built-up areas. Flight time is 40 minutes, the range reaches 24 km, and image transmission is reliable up to a distance of 12 km (FCC) / 8 km (CE).

Advantages:

• 7.9" display with 2000 nits brightness – perfect readability of thermal images in direct sunlight
• Larger display workspace (2048 × 1536 px) for detailed analysis of thermal anomalies
• Controller with Android 11 and 128 GB storage – modern system with ample space for data
• Controller battery 5800 mAh with up to 4.5 h runtime – all-day work without charging concerns
• Unique combination of 640 × 512 thermal camera and 48 MP camera in a drone weighing 866 g
• Category C1 allows operation near people – ideal for inspections in built-up areas
• Thermal sensitivity ≤50 mK detects even very fine temperature anomalies
• Wide temperature measurement range from -20°C to +550°C covers most inspection scenarios
• 40-minute flight time allows coverage of extensive inspection areas in a single flight
• A-Mesh networking for coordinating multiple drones for large-scale inspections
• Integrated system without the need to connect a phone or tablet

Most Common Uses and Recommendations:

The main domain of the EVO Lite 640T Enterprise Plus Combo is thermal inspections in the field, where the larger and brighter display of the Smart Controller V3 provides significant work comfort. Typical applications include inspection of photovoltaic power plants and detection of faulty panels, inspection of building thermal insulation and identification of thermal bridges, monitoring the condition of electrical lines and substations, inspection of heating and air conditioning systems, detection of moisture in roof structures, and support for firefighting and rescue operations in searching for people.

We particularly recommend the Plus Combo with the 7.9" display to operators who work in direct sunlight and need to clearly see thermal anomalies without screen glare. The larger display area facilitates working with split-screen view, showing both the visible image and the thermal map simultaneously. Thanks to its weight under 900 grams and C1 classification, the drone can be operated in densely populated areas.

It is important to note that the measurement accuracy of ±3°C (or ±3%) and the precise measurement distance of 1–25 m are optimal for inspection purposes and general thermal screening. For users with higher demands, we recommend considering the following alternatives:

For precise thermal measurement, consider the EVO Max 4T V2 with an accuracy of ±2°C and 10x optical zoom.

For night operations, we recommend the EVO Max 4N V2 with a starlight camera ISO 440,000.

For a larger thermal sensor and longer flight, consider the EVO II Dual 640T V3 Rugged Bundle.

For professional mapping, we recommend the EVO II Pro RTK V3 Rugged Bundle with centimeter-level RTK accuracy.

Package contents:

• 1× EVO Lite 640T Enterprise drone (incl. battery, 32 GB microSD)
• 1× Smart Controller V3 (EF9-3) – 7.9" display
• 1× Intelligent Flight Battery LiPo 3S (6175 mAh)
• 1x Battery Charger
• 1× USB-C charging cable for the controller
• 2x pair of spare propellers
• 1× protective transport case (Rugged Case)
• 1× PC connection cable (USB-C)
• 1x Quick start guide
• 1× safety manual

Technical specifications:
